Specifications
General

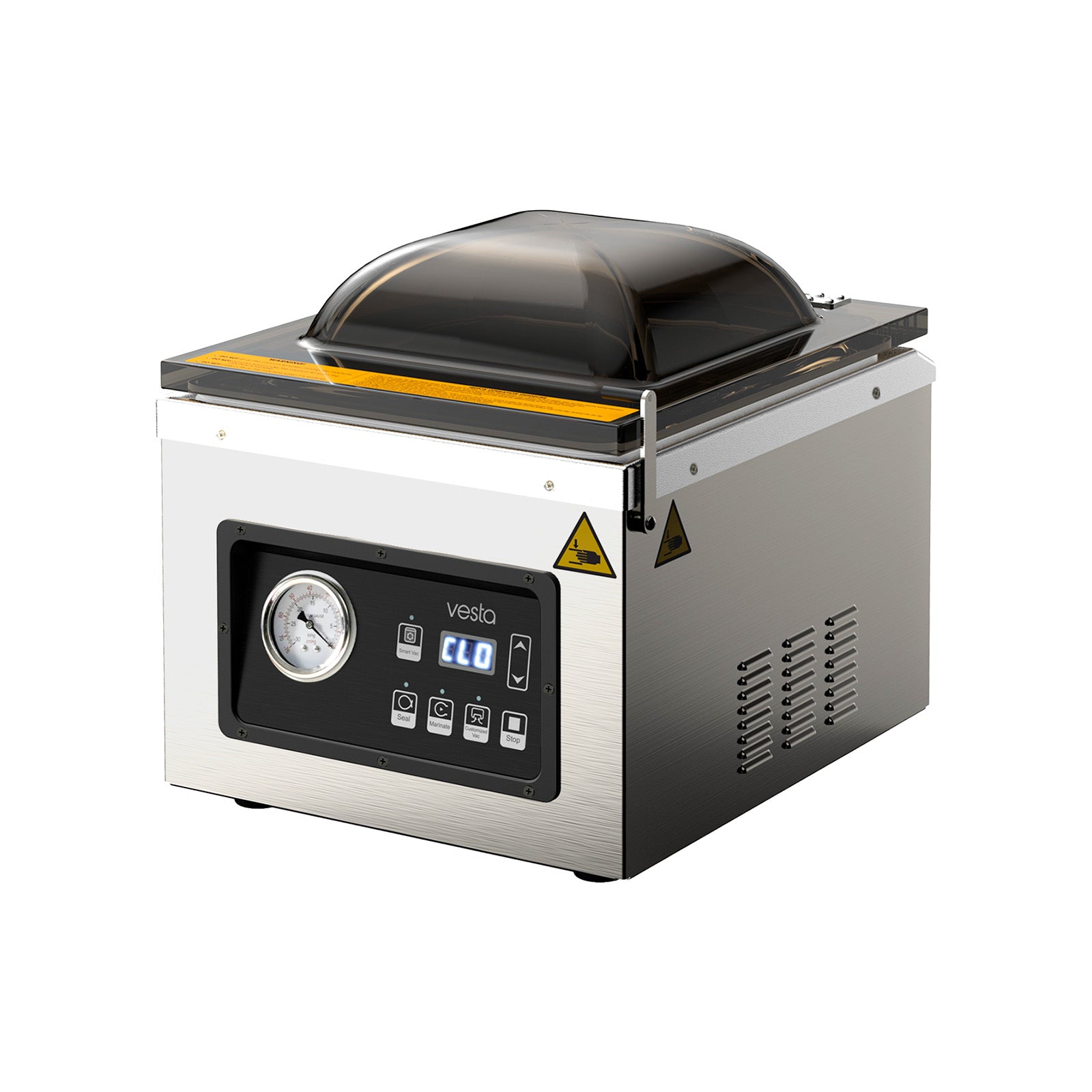

Model C17af
Certifications GS,CE, RoHS,Reach,ETL
Electrical Specifications
Power 950 W
Power supply 220-240 V~ 50 Hz
Vacuum Performance
Pressure -29.8’’Hg (-1009 mbar) (-100.9 kPa)
Pump speed 6.2㎡/H ± 10%

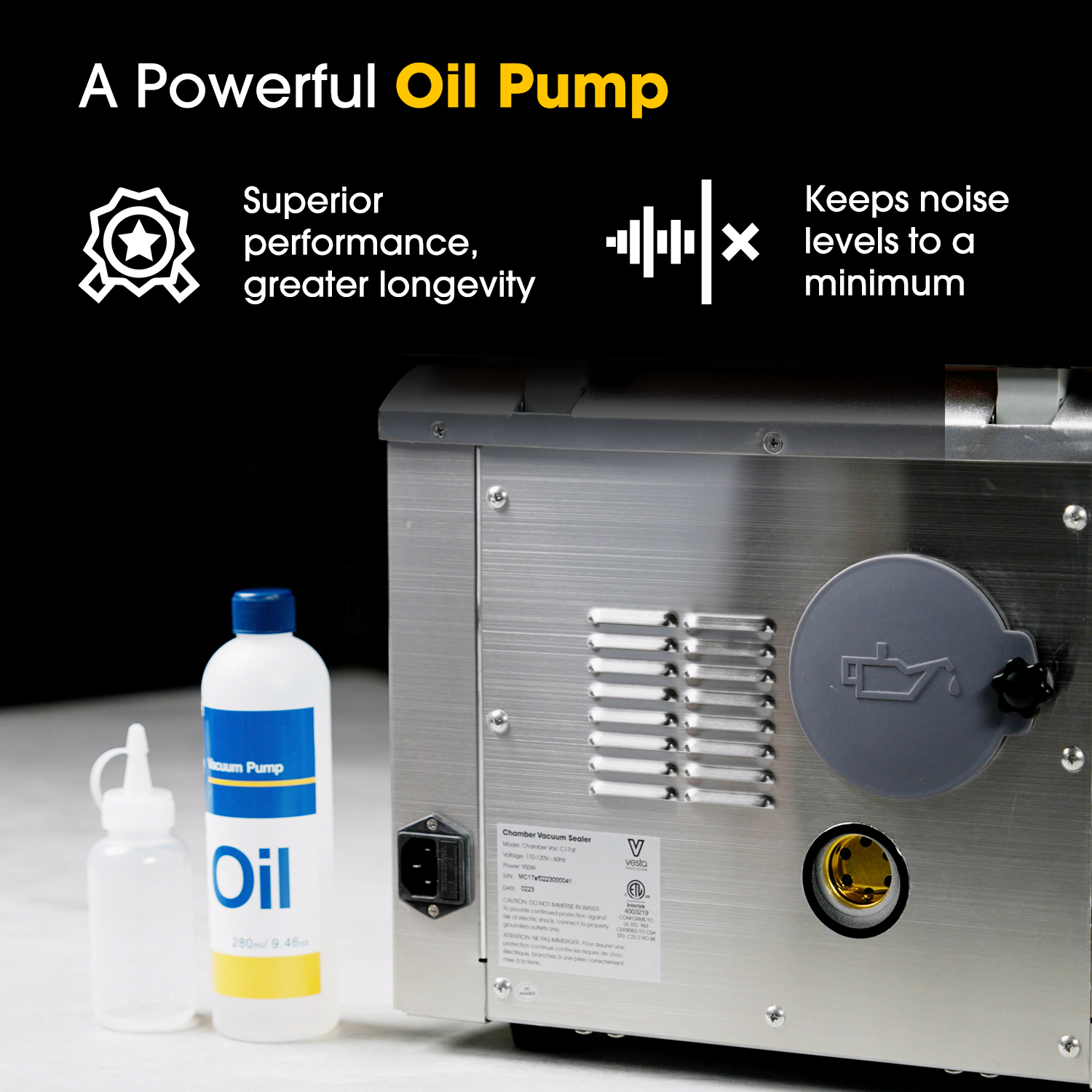

Pump type Oil pump
Vacuum Cycle Management Smart Vacuum

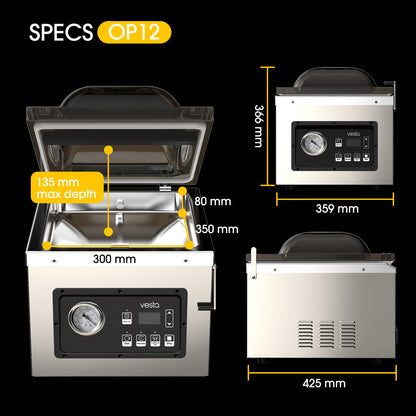

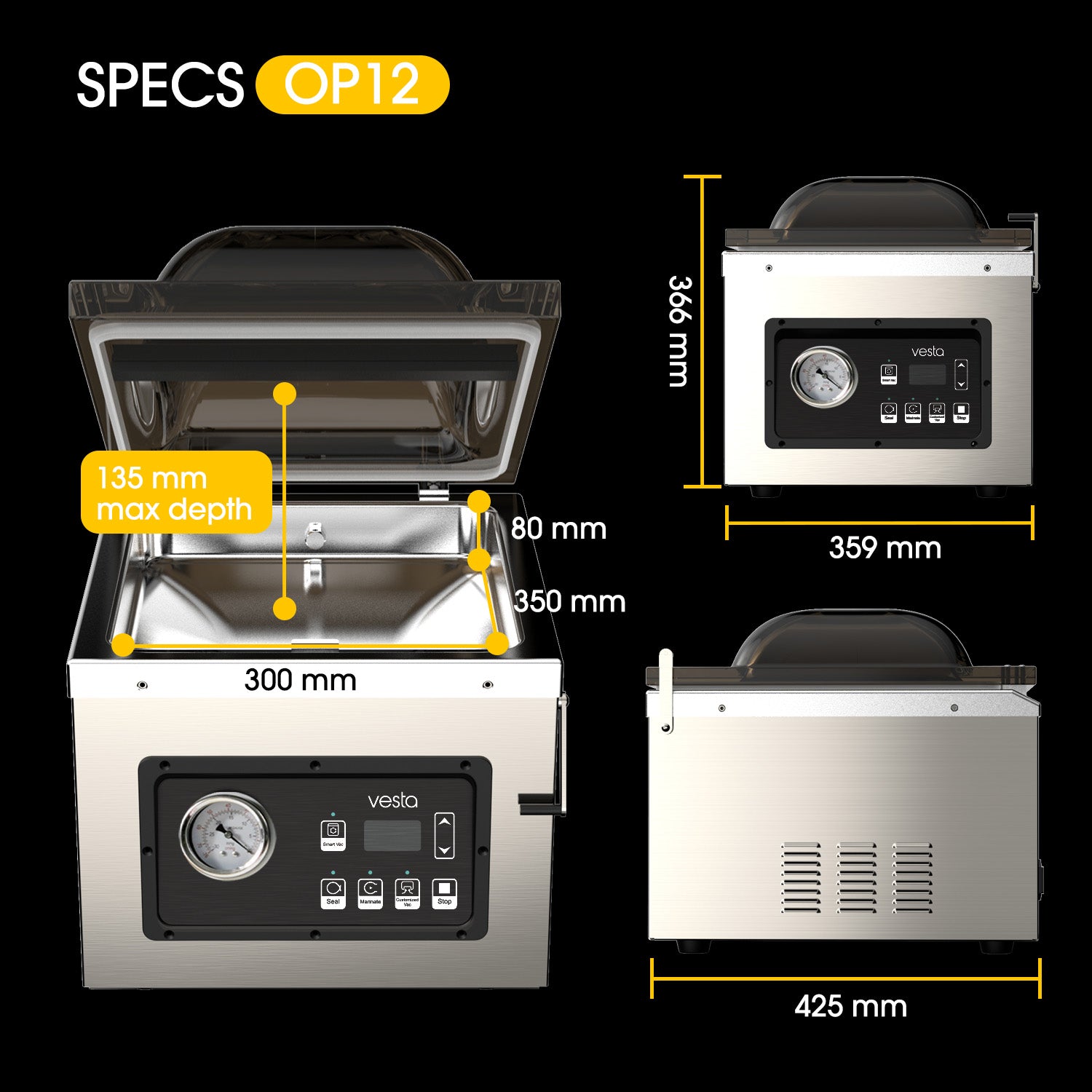

Structure& Dimensions
Seal bar width 300 mm
Seal strip 2.5 mm x 2pcs
Product dimensions 359 x 425 x 366 mm
Weight 23.6 kg
